Architectural Plans: 193 Marlborough– Remodeling (1915)

In mid-1915, the firm of Lois L. Howe and Manning, architects, prepared plans for remodeling 193 Marlborough.

The plans included a penthouse (or attic) addition with a mansard roof at the rear of building in which four servant’s bedrooms, a store room, and a bathroom were located. They also included a new bay window on first floor at the rear; a new “servants’ entrance” at the basement level in the front, and miscellaneous interior remodeling.

These scans of the plans are provided courtesy of the Boston Public Library Arts Department. The originals of the blueprints are located in the Arts Department’s City of Boston Blueprints Collection (reference BIN C-15). In addition to the plans shown below, the drawings also include section drawings and a framing plan for the new penthouse.

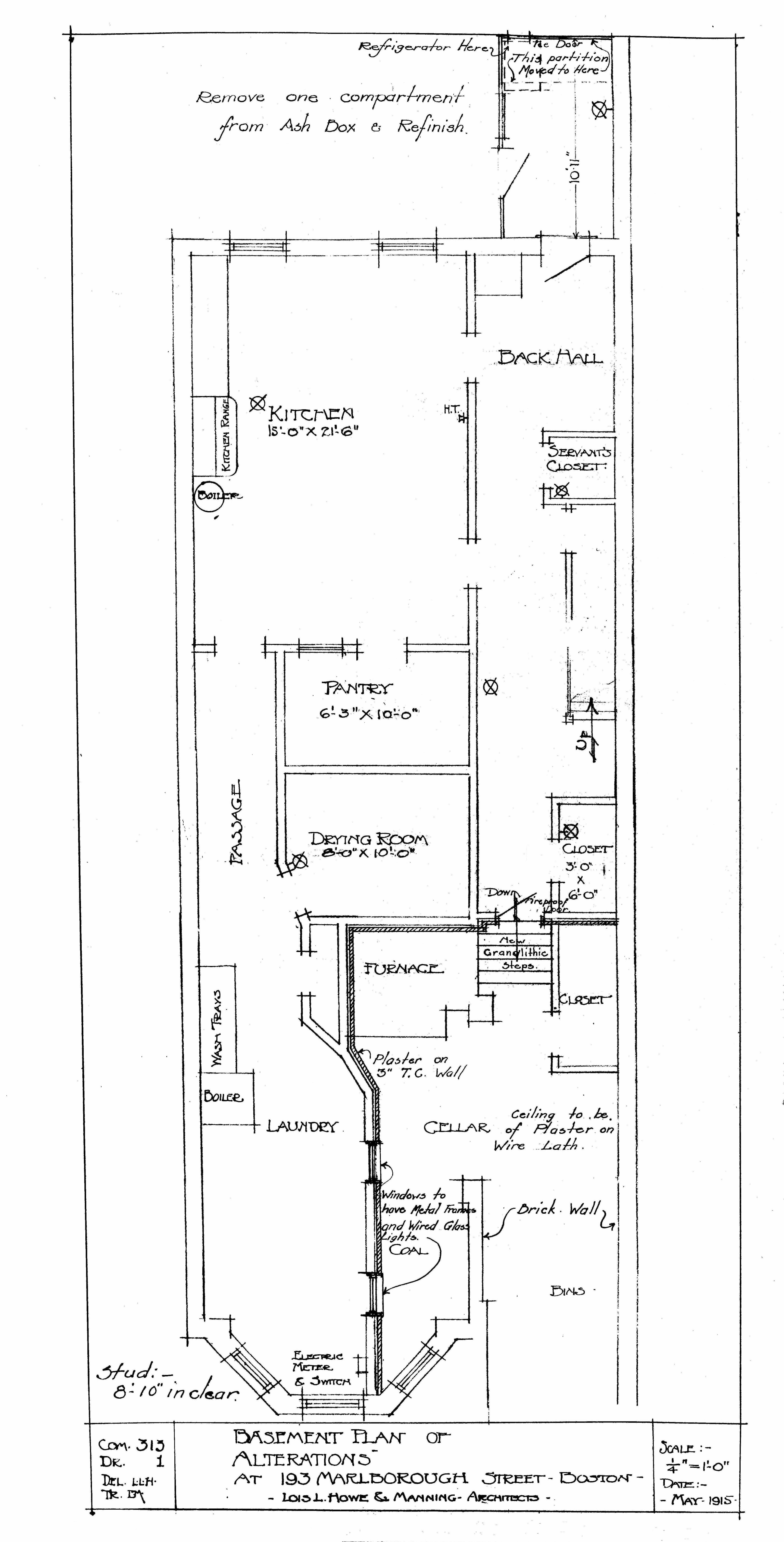

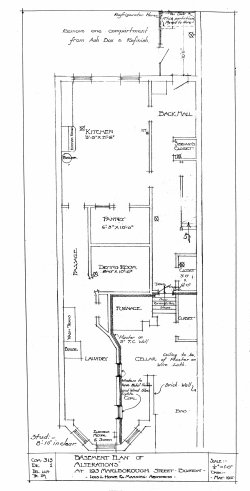

193 Marlborough, 1915 remodeling, basement plan; Lois L Howe and Manning, architects

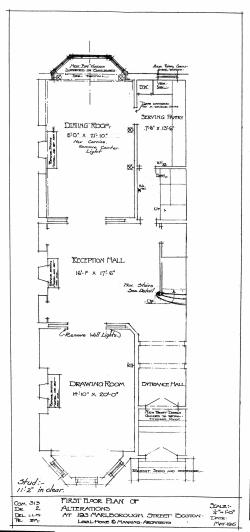

193 Marlborough, 1915 remodeling, first floor plan; Lois L Howe and Manning, architects

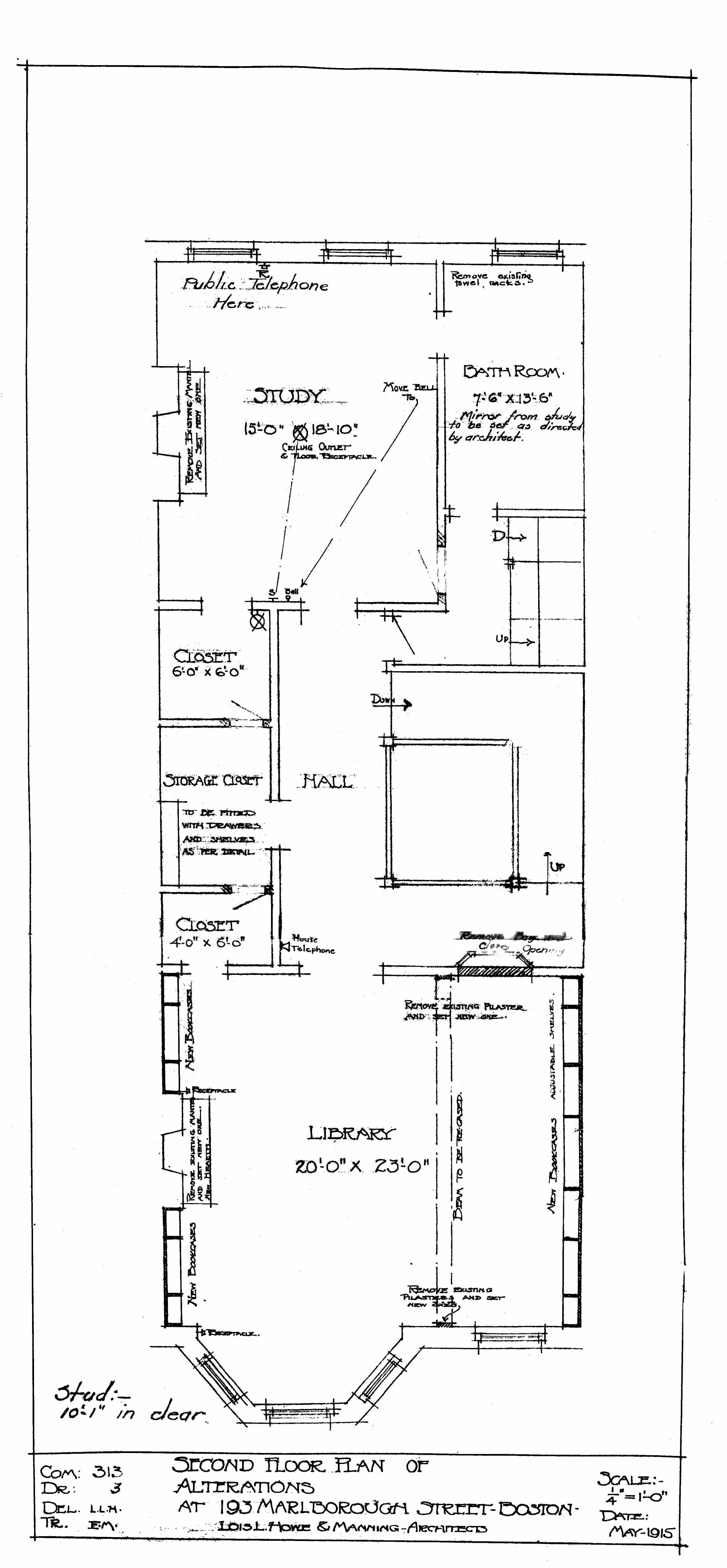

193 Marlborough, 1915 remodeling, second floor plan; Lois L Howe and Manning, architects

193 Marlborough, 1915 remodeling, third floor plan; Lois L Howe and Manning, architects

193 Marlborough, 1915 remodeling, fourth floor plan; Lois L Howe and Manning, architects

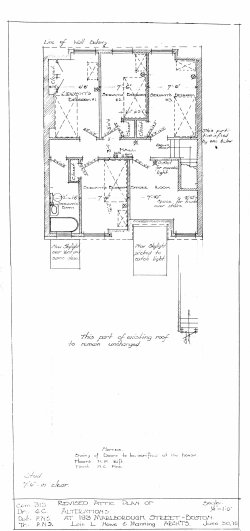

193 Marlborough, 1915 remodeling, fifth floor (attic) plan; Lois L Howe and Manning, architects

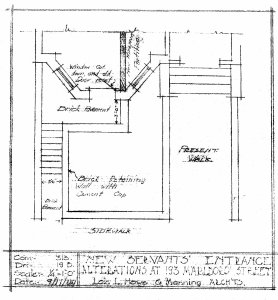

193 Marlborough, 1915 remodeling, new front entrance at basement level; Lois L Howe and Manning, architects
